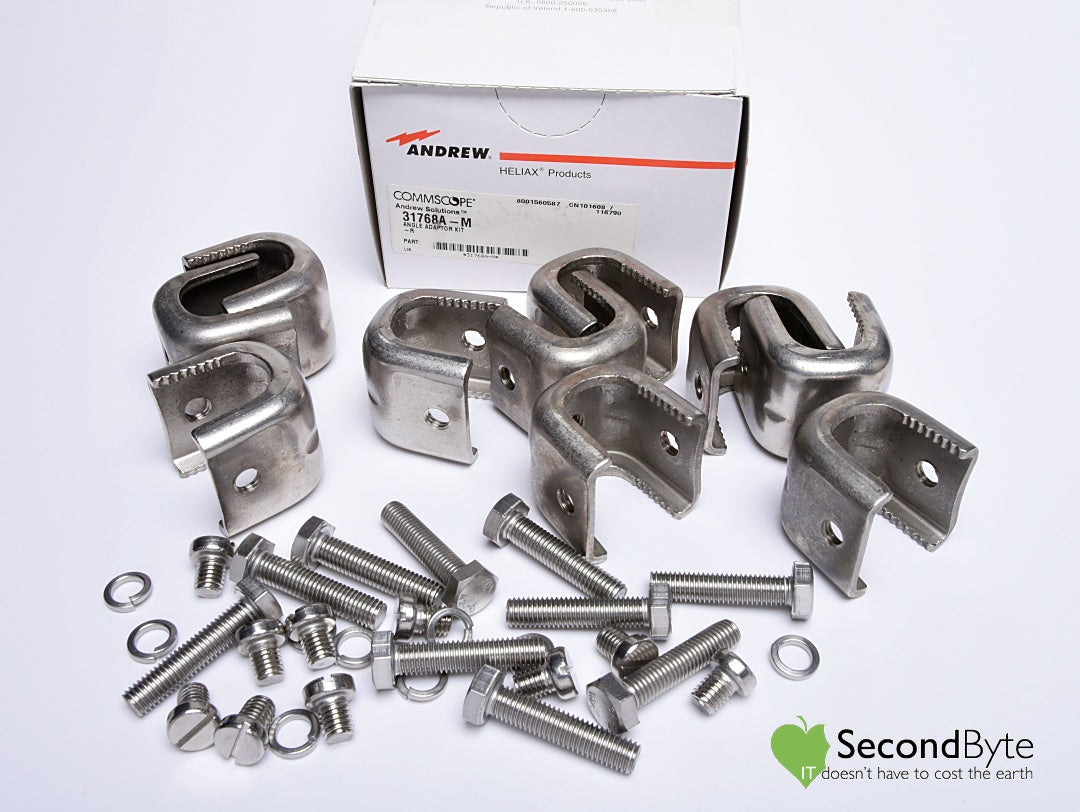

Commscope Stainless Steel Angle Adapter Kit M10 Tapped Hole Pk 10 31768A-M
Commscope Stainless Steel Angle Adapter Kit M10 Tapped Hole Pk 10 31768A-M
Regular price
$45.00 AUD
Regular price
Sale price
$45.00 AUD
Specifications
Product classification
| Product Type | Angle adapter |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Adapter Type | Angle adapter |
| Mounting | M10 tapped hole |
Dimensions
| Inside Width | 22.352 mm | 0.88 in |
| Outside Width | 49.784 mm | 1.96 in |
| Inside Length | 22.352 mm | 0.88 in |
| Outside Length | 44.958 mm | 1.77 in |
| Material Thickness | 4.191 mm | 0.165 in |
Material specifications
| Material Type | Stainless steel |
Mechanical specifications
| Installation Torque, maximum | 20.337 N-m | 15 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Triple stack, 1-5/8 in cable |
Usage
-
Compact, lightweight, high quality stainless steel angle adaptors provide a cost saving option to standard adaptors for many wireless systems that use HELIAX® coaxial cable
-
Stainless steel, kit of 10.
-
For mounting 1/2 inch to 4 inch cable hangers to angle tower members up to 7/8 in (22 mm) thick
-
Includes hanger attachment hardware
-
Impervious to environmental extremes and adaptable to various tower configurations.
