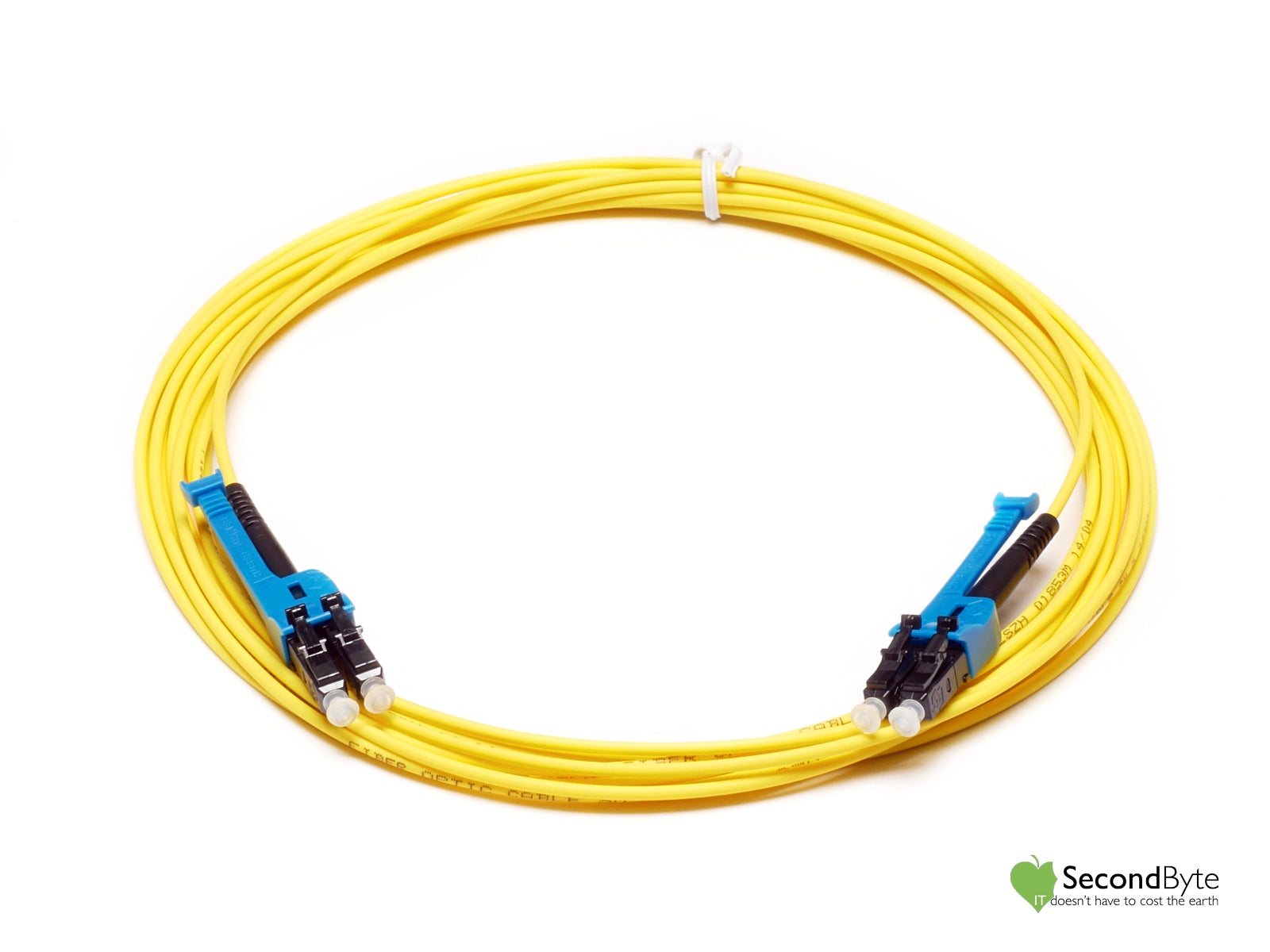

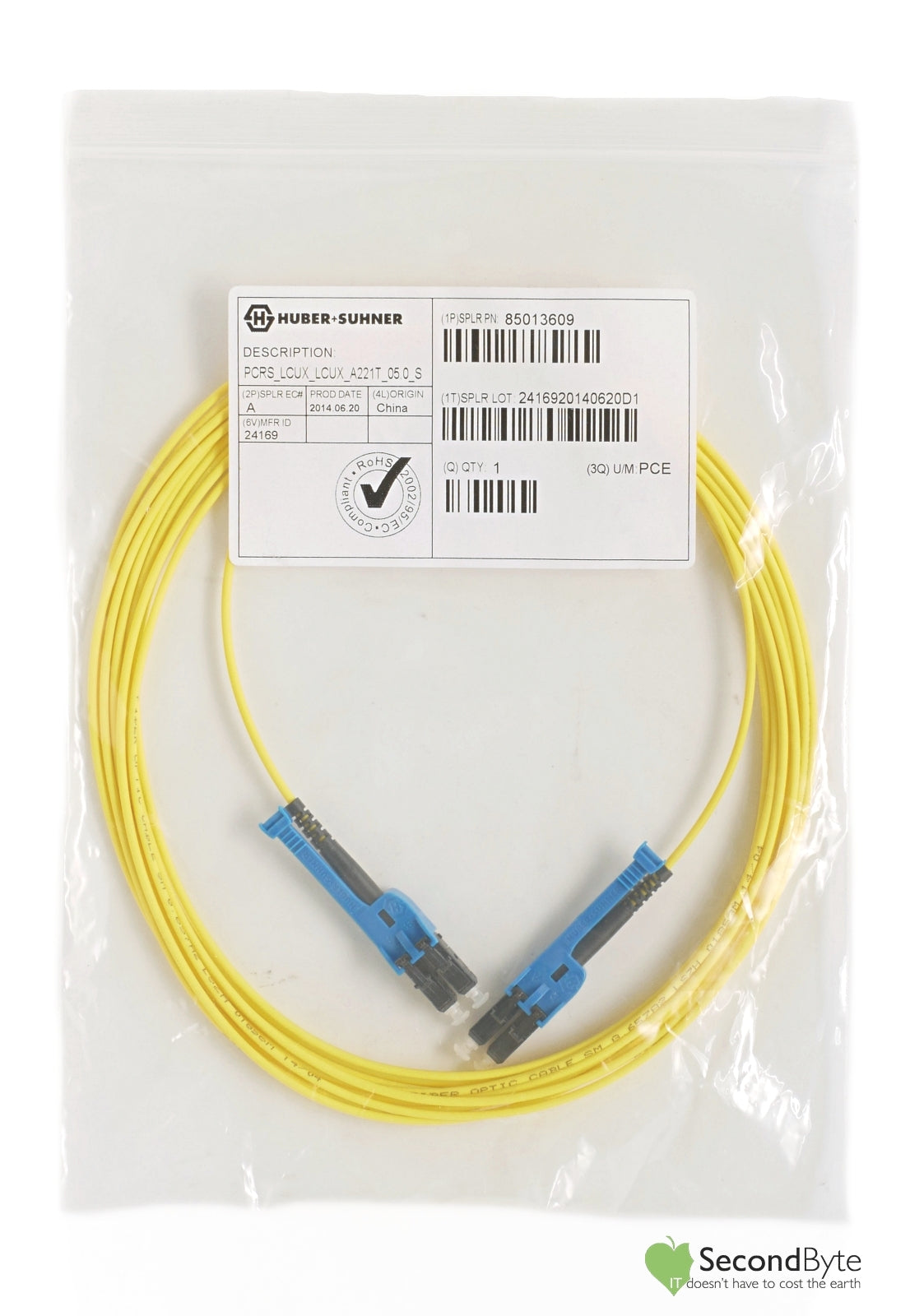

Huber-Suhner PCRS_LCUX_A221T_05.0_S 5M Fibre Optic Cable 85013609

Brand New.

General data
Assembly family Duplex patch cord - LC to LC
Application Area Indoor
Fiber quantity 2 pcs
Polarity A-B / B-A straight polarity
Flammability rating UL 94 V-0
Operation temperature -25 °C ... 70°C
Side A / Le
Type Fiber Optic Connector
Connector family LC
Gender Plug
Housing colour FO Connector Black
Clip type Duplex
Clip family XD
Boot colour Black
Mating cycles with repeated cleaning 1000
Mechanical Inte4ace Standard IEC 61754-20, TIA 604-10-A (LC)
Pe4ormance class H+S S
Polishing UPC
Insertion loss 97% ≤ 0.45 dB
Insertion loss typical ≤ 0.2 dB
Return loss ≥ 50 dB
Side B / Right
Type Fiber Optic Connector
Connector family LC
Gender Plug
Housing colour FO Connector Black
Clip type Duplex

Side B / Right
Clip family XD
Boot colour Black
Mating cycles with repeated cleaning 1000
Mechanical Inte4ace Standard IEC 61754-20, TIA 604-10-A (LC)
Pe4ormance class H+S S
Polishing UPC
Insertion loss 97% ≤ 0.45 dB
Insertion loss typical ≤ 0.2 dB
Return loss ≥ 50 dB
Fiber Optic Cable
Cable Description Riser cable
Fiber quantity 2
Fiber type E9/125A2
CPR class Dca-s1a,d0,a1
Strain relief aramide yarn
Outer jacket diameter 2.1mm
Outer jacket material LSFH
Tensile strength during installation 200 N
Tensile strength in service 100 N
Min. bending radius during installation 10 mm
Min. bending radius in service 10 mm
Crush resistance during installation 5000 N/dm
Crush resistance in service
900 N/dm
900 N/dm
Fire propagation standard
IEC 60332-1-2
IEC 60332-3-25
