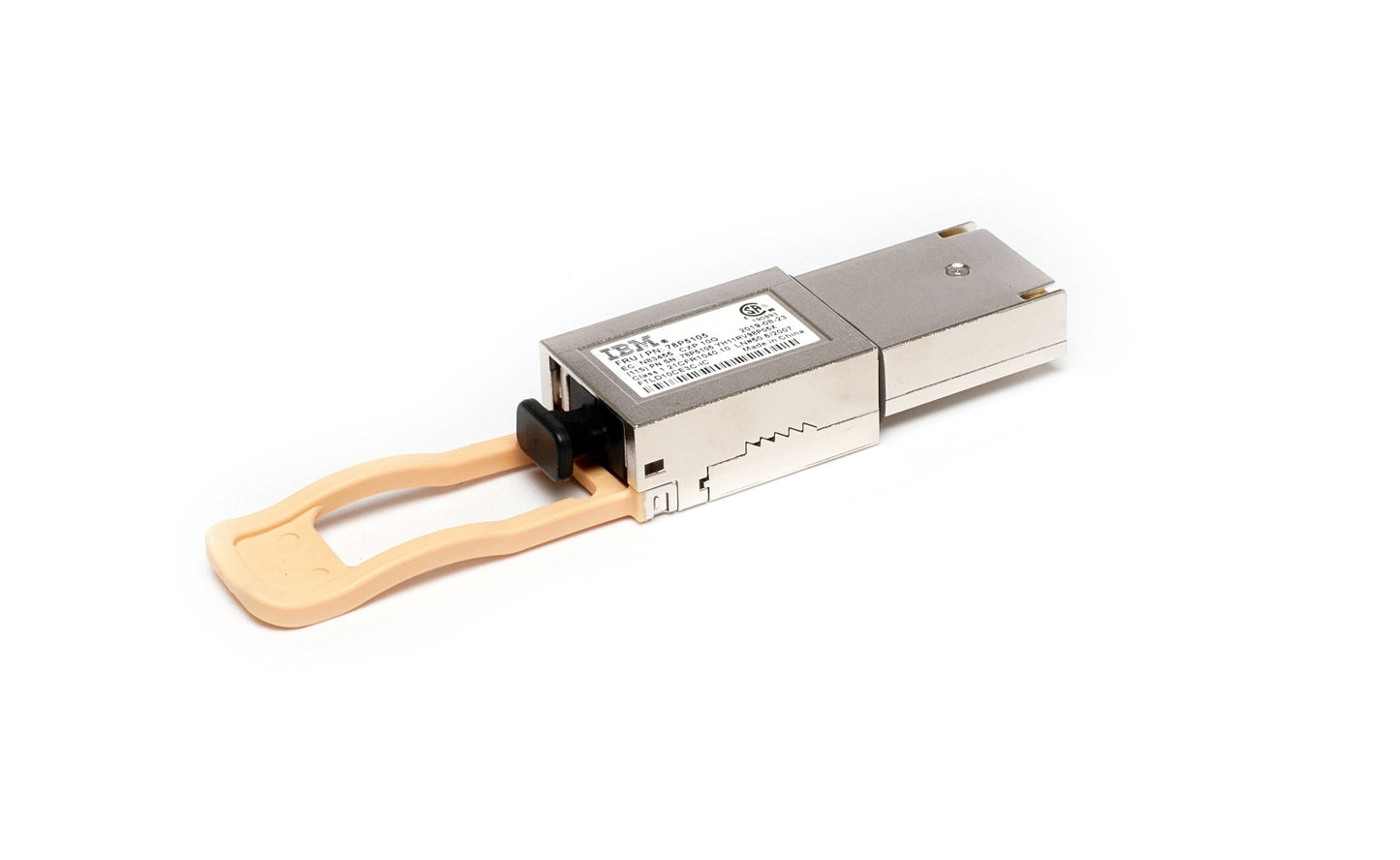

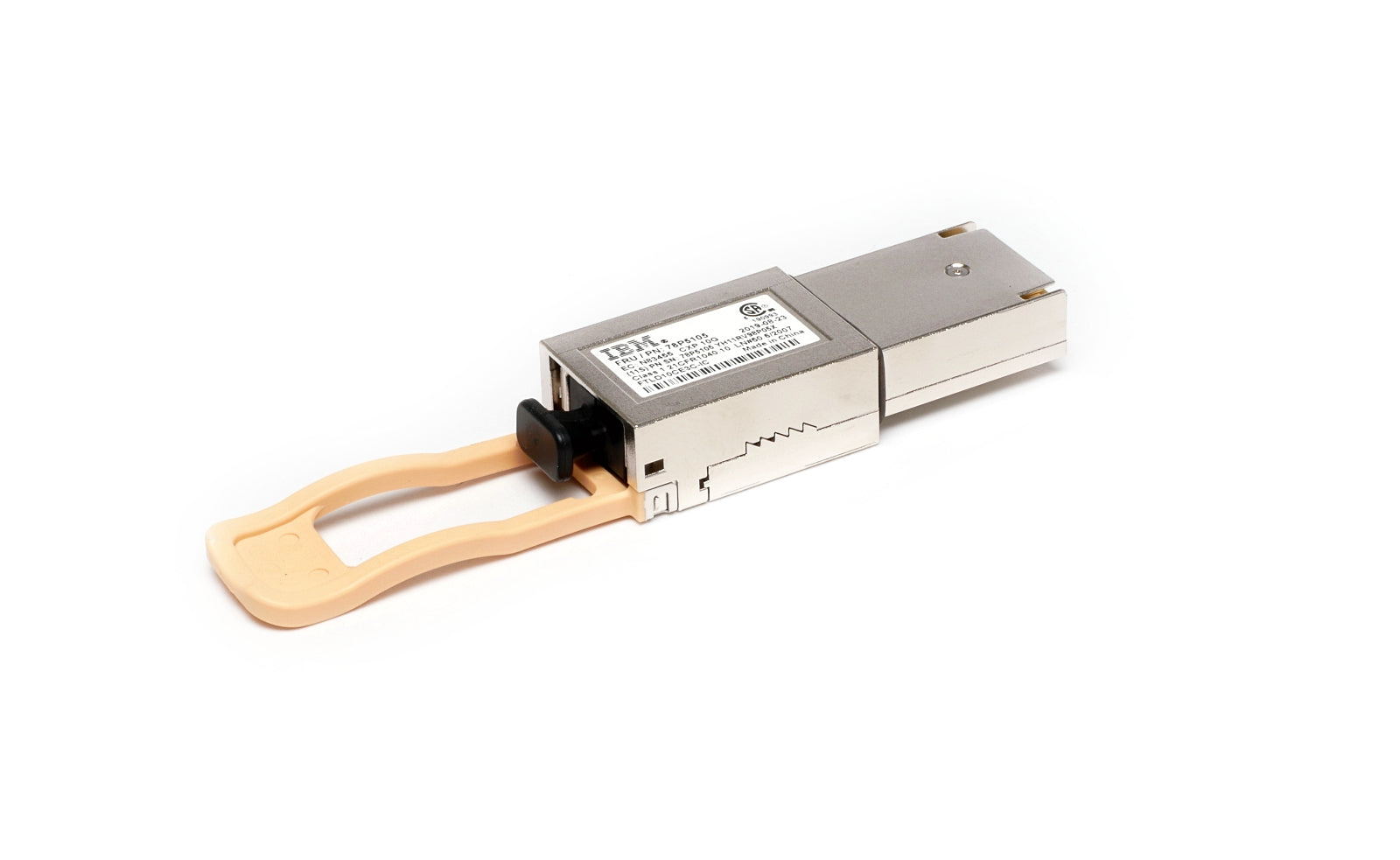

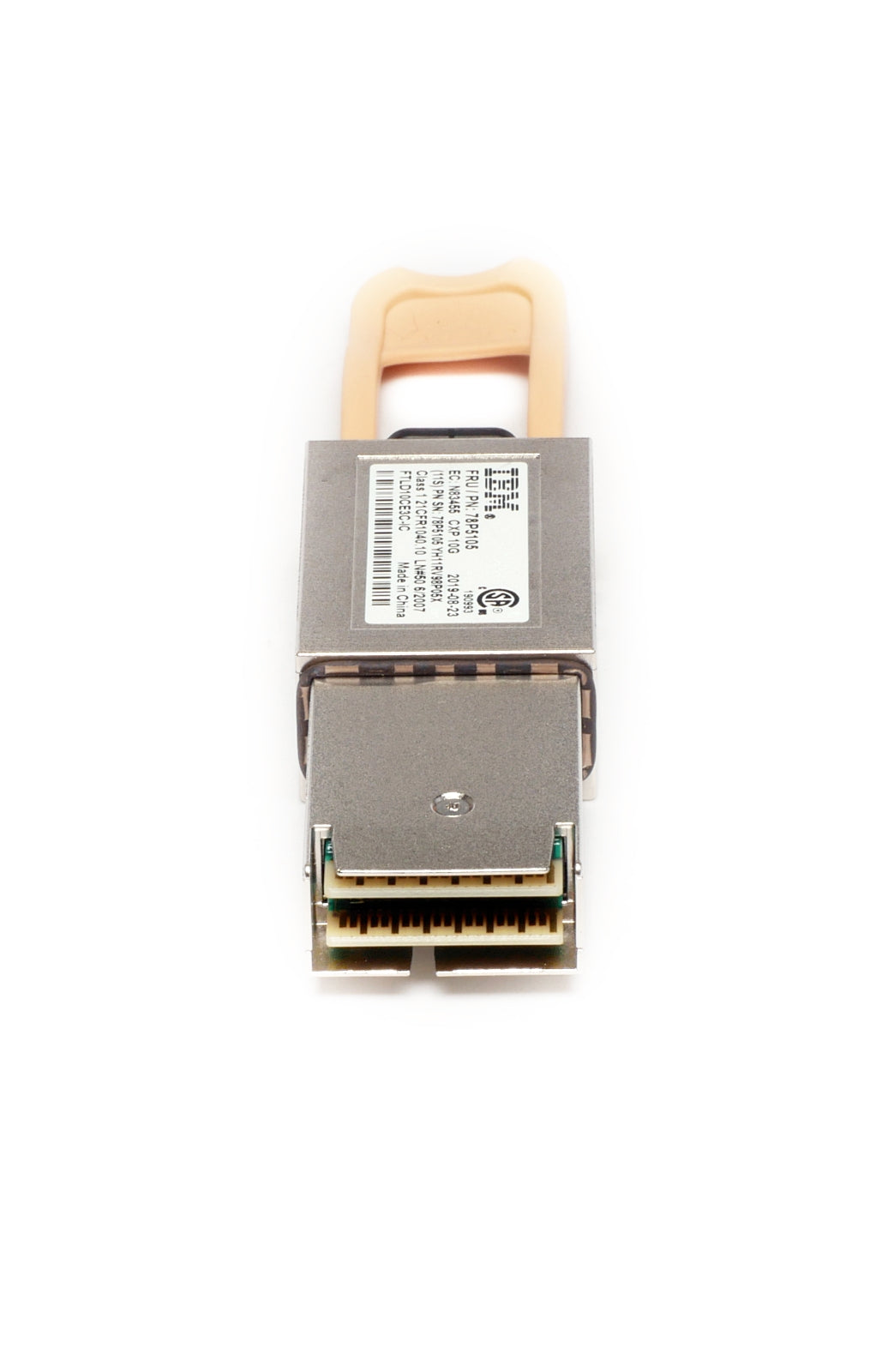

IBM 850nm MMF CXP 10G Pluggable Optical Transceiver 78P5105 FTLD10CE3C-IC
IBM 850nm MMF CXP 10G Pluggable Optical Transceiver 78P5105 FTLD10CE3C-IC
Regular price
$35.00 AUD
Regular price
Sale price
$35.00 AUD
Refurbished Unit.
FTLD10CE3C second-generation CXP transceiver modules are designed for use in up to 136 Gigabit per second links over 12 duplex multimode fiber pairs. They are compliant with the IBTA CXP Specification, IEEE 802.3ba 100GBASE-SR10 and CPPI electrical interfaces. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC, and Application Note AN-2038. They support Tx/Rx optical power monitoring functionality.
Key Features
- 12-channel full-duplex transceiver module
- Hot Pluggable CXP form factor
- Multirate capability: 1Gb/s to 11.3Gb/s per channel
- Maximum link length of 100m on OM3 Multimode Fiber (MMF)
- Unretimed CPPI electrical interface
- Requires 3.3V power supply only
- Low power dissipation: < 3.5W
- Reliable VCSEL array technology
- Digital Diagnostics including Tx and Rx optical power monitoring
- Commercial operating case temperature range: 0ºC to 70ºC
- RoHS-6 Compliant (lead-free)
